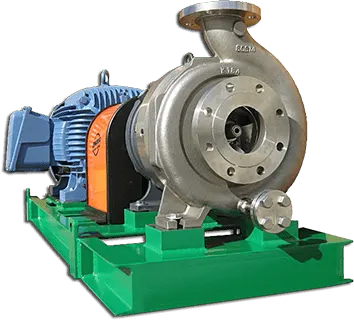

Magnatex MAXP Series ANSI B73.3 Magnetic Drive Pump
$8,500.000
Magnatex MAXP Series ANSI B73.3 Magnetic Drive Pump. ANSI B73.3 sealless magnetic drive; 2,000 GPM; 470 ft. Contact Bluegrass Shipping Containers for availability and delivery details.
Find the Magnatex MAXP Series ANSI B73.3 Magnetic Drive Pump in the Bluegrass Shipping Containers chemical tanks range. Review the model details below to compare size, construction and equipment compatibility before choosing your configuration.
Specifications and equipment
- Standard: ANSI B73.3 sealless magnetic drive
- Maximum flow: 2,000 GPM
- Maximum head: 470 ft
- Liquid temperature: -150°F to +800°F
- Maximum power: up to 200 HP
- Working pressure: 285 psig
- Connections: 150 lb RF ANSI flanges standard; 300 lb RF optional
- Bearings: silicon carbide; SiC-X optional for upset or dry-run conditions
- Impeller: fully enclosed, no shimming or assembly adjustment required
- Speed: up to 3,550 rpm
- Magnets: neodymium, or samarium cobalt for high temperature service
- Motor: NEMA or IEC frame mounted
- Options: secondary containment, steam jackets, external flush, recirculated flush and vent, vortex breakers, centreline mounting
- Single static gasket construction — no O-rings anywhere in the process fluid, so no elastomer to swell, extrude or degrade in an aggressive hydrocarbon.
- Heavy-walled containment shell , with optional secondary containment for the highest-consequence services.
Ask about this product
Contact Bluegrass Shipping Containers with product reference BGC-PROPANE-737 and your delivery ZIP code to confirm availability, included equipment and delivery arrangements.
