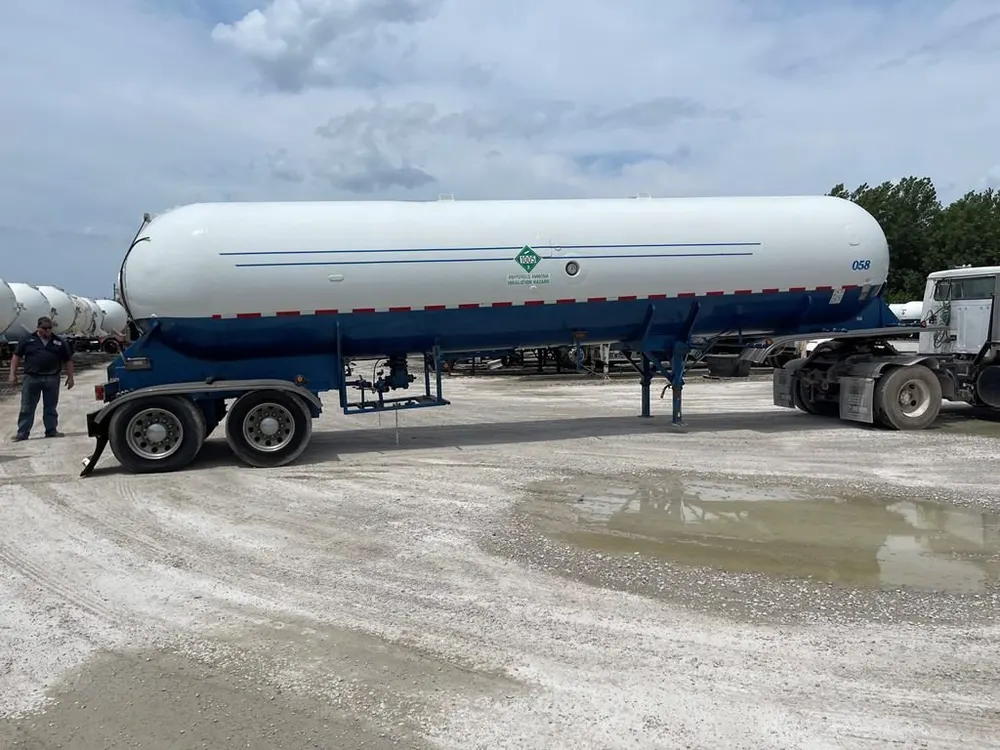

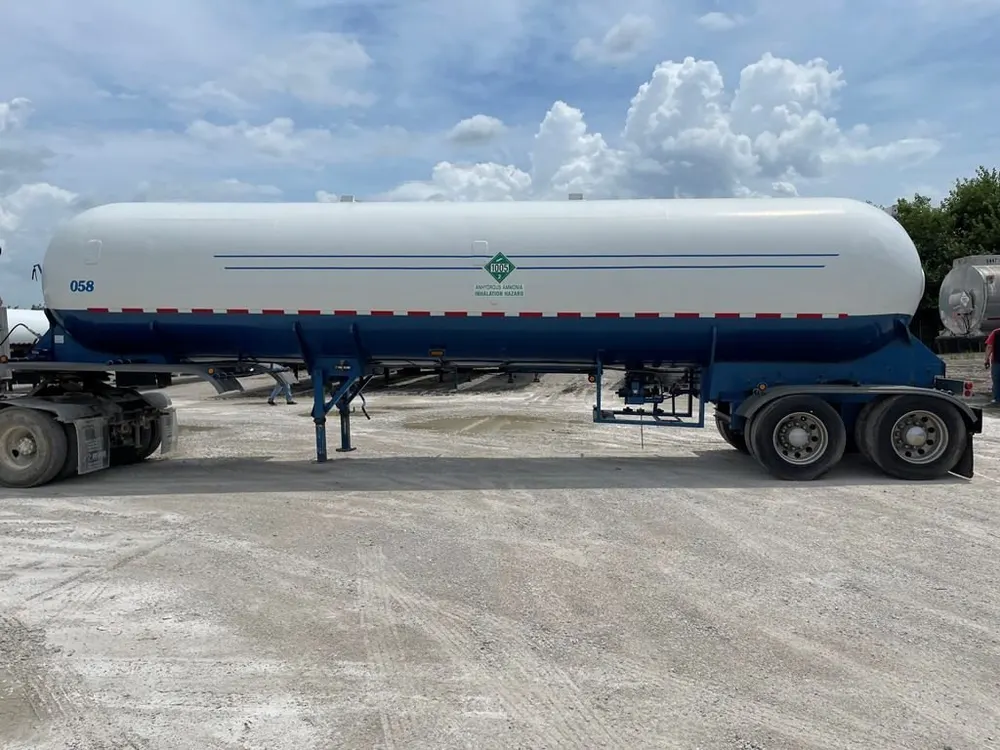

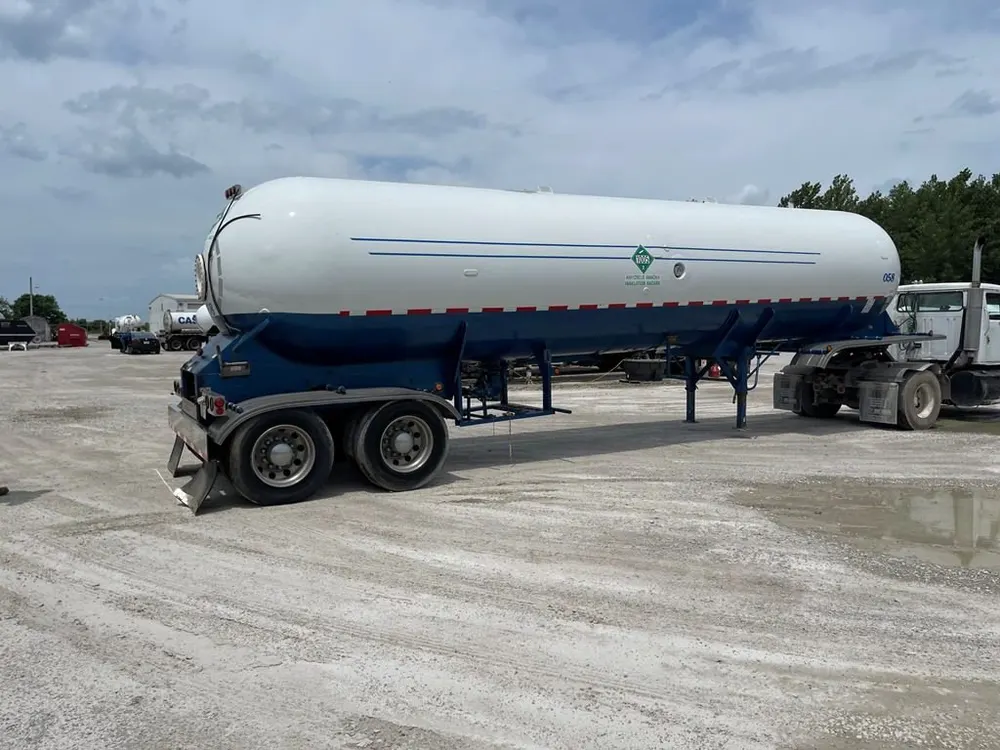

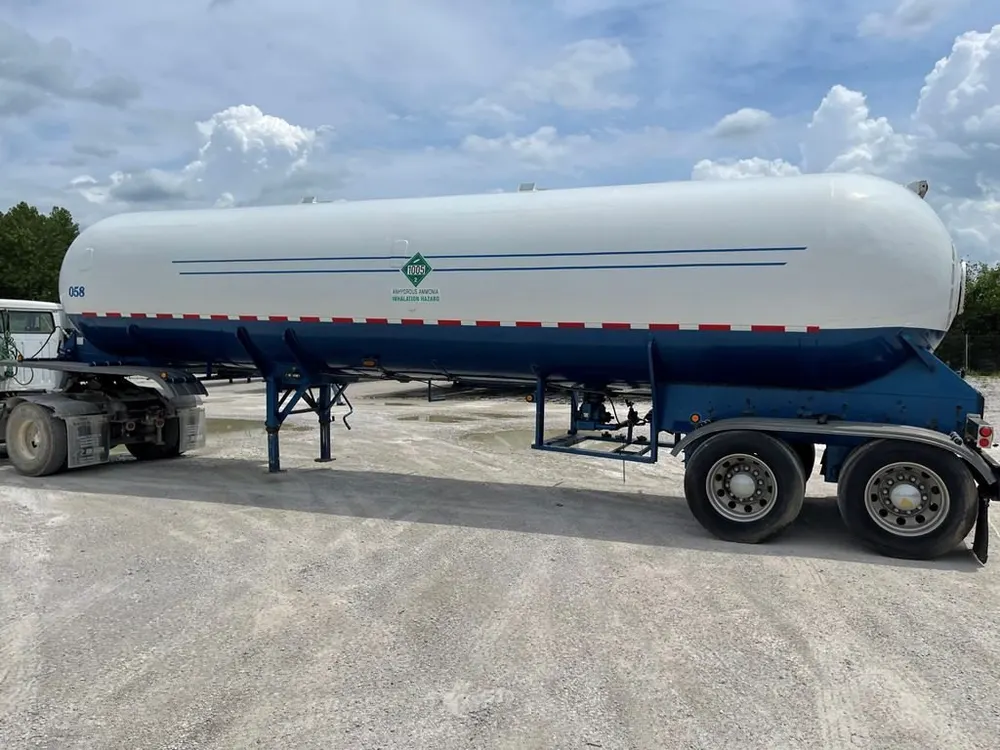

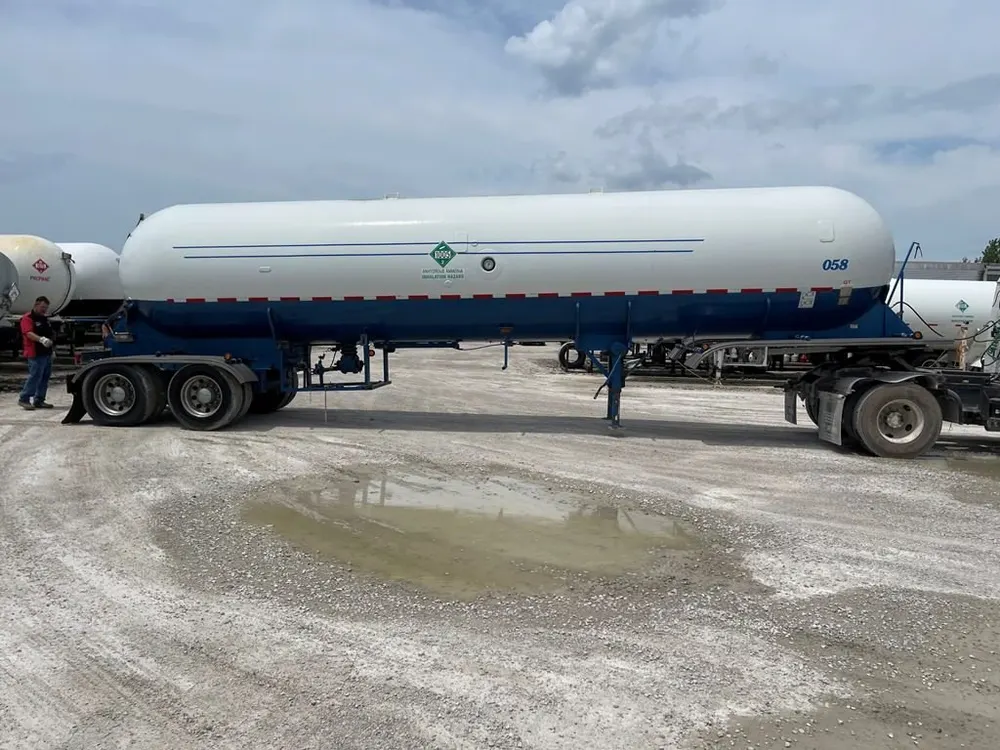

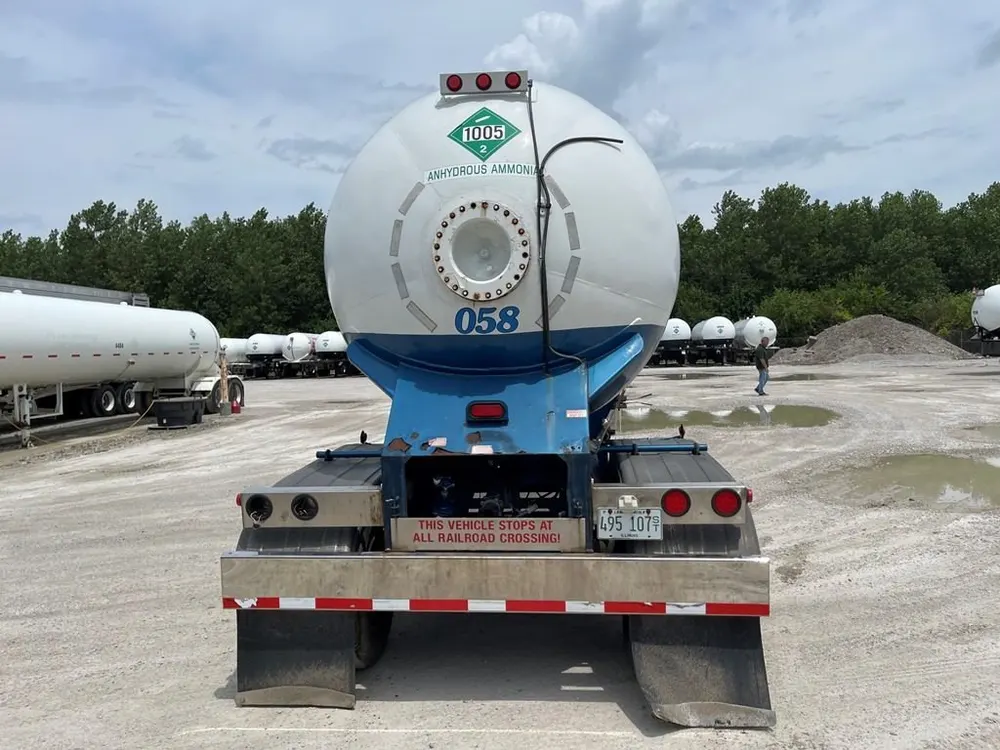

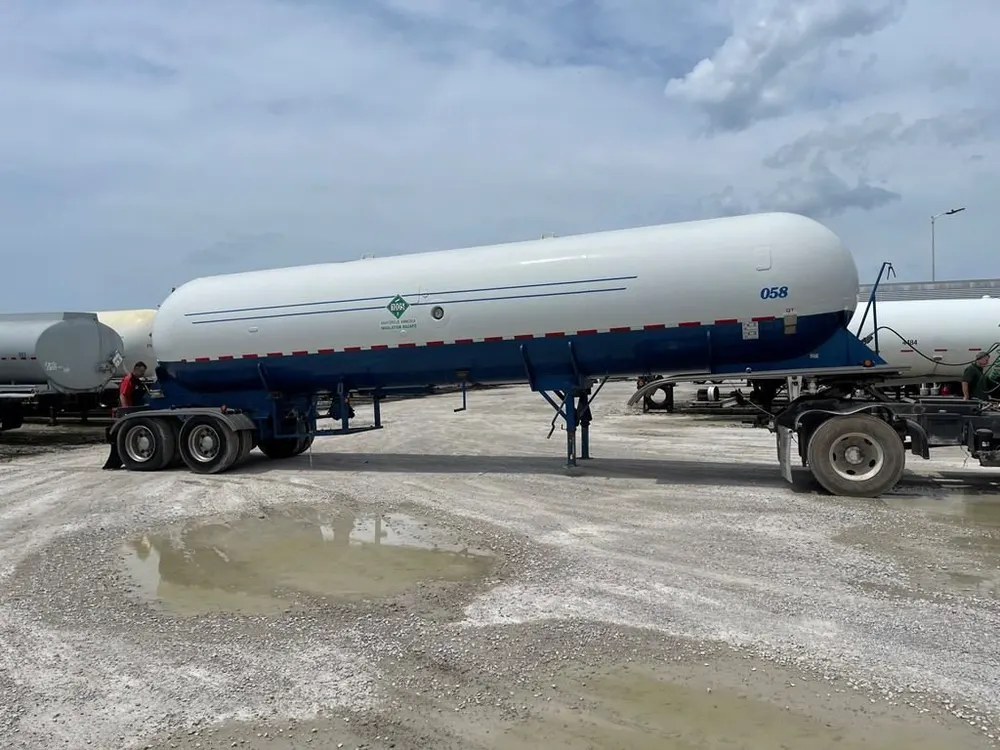

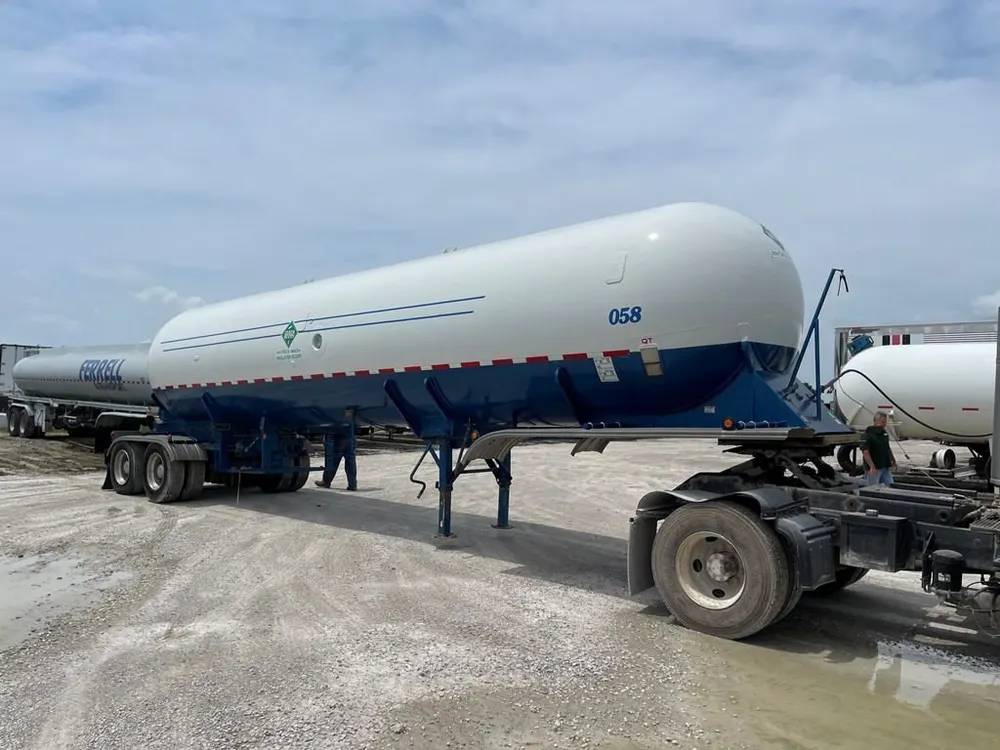

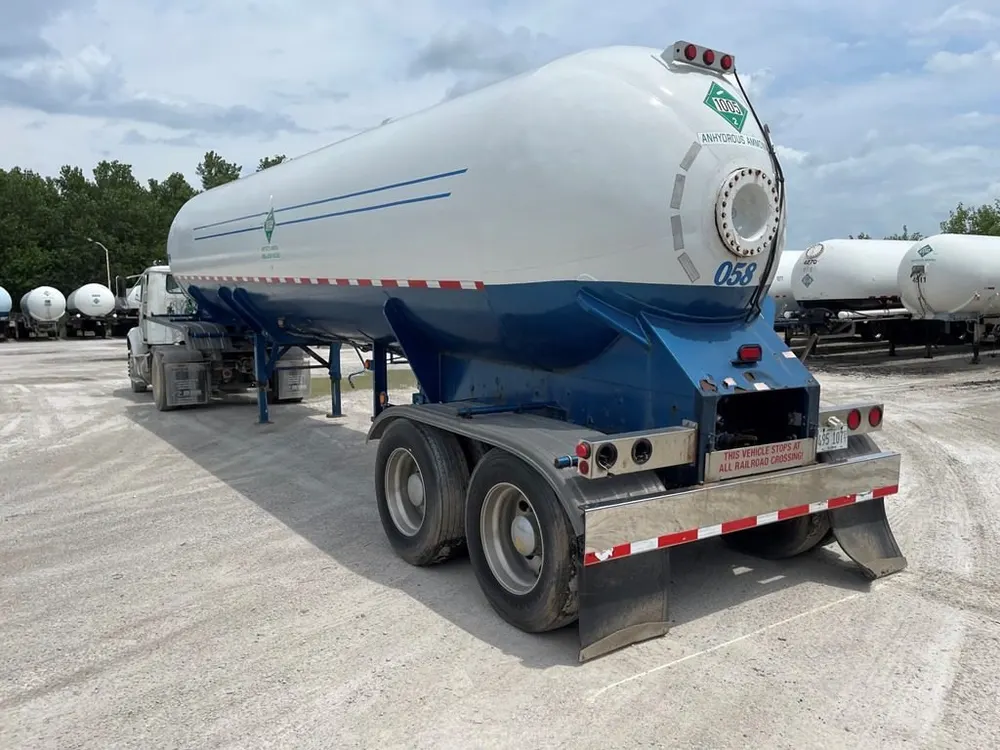

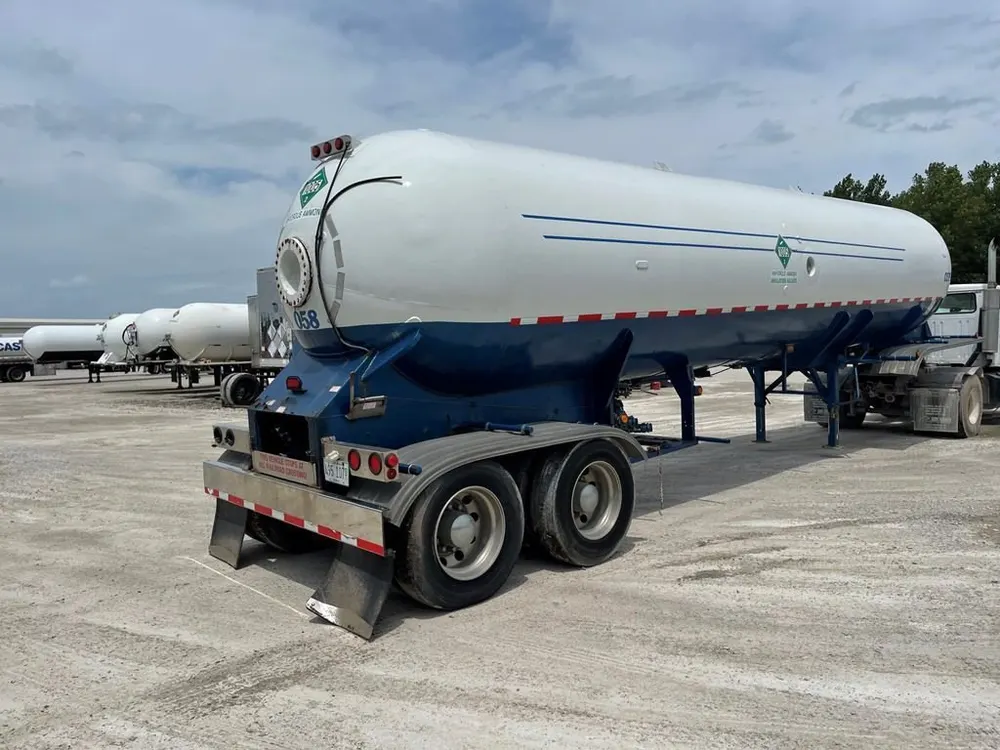

Superior 10,450 Gallon NH3 Transport Trailer

Find the Superior 10,450 Gallon NH3 Transport Trailer in the Bluegrass Shipping Containers nh3 tanks range. Review the model details below to compare size, construction and equipment compatibility before choosing your configuration.

Specifications and equipment

• Capacity: 10,450 US gallons
• Specification: DOT MC-331 cargo tank
• Maximum working pressure: 265 PSI
• Minimum design temperature: -20°F
• Shell thickness: approximately 0.390-0.401 in
• Head thickness: 0.250 in, hemispherical heads
• Outside diameter: approximately 84.8-86.8 in
• Overall length: approximately 463 in
• Material: pressure-vessel-quality carbon steel plate (ASTM A612 Gr. B or A516 Gr. 65/70 per 49 CFR 178.337-2)
• Pump: Blackmer transfer pump
• Instrumentation: tank volume gauge
• Running gear: tandem axle, spring suspension, aluminium rims and fenders
• What the 265 PSI Rating Means

Ask about this product

Contact Bluegrass Shipping Containers with product reference BGC-PROPANE-805 and your delivery ZIP code to confirm availability, included equipment and delivery arrangements.
